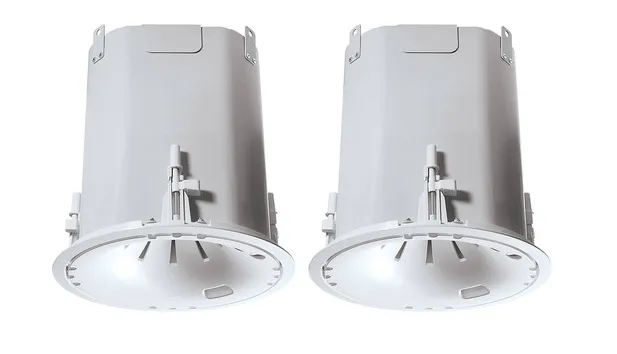

Sold as a pair, the white JBL Control 47HC is a passive 6.5" coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of high-ceiling venues ranging from retail stores to restaurants. The 60W transformer allows the Control 47HC to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 47HC is equipped with a durable 6.5" polypropylene woofer and a 1" soft dome tweeter, yielding a frequency response of 70 Hz to 14 kHz, and a continuous program power capacity of 150W.
Utilizing JBL's RBI technology and an 11" waveguide, the Control 47HC delivers a narrow 75° coverage pattern and enhanced speech intelligibility. Removable locking input connectors, detachable grilles, cutout templates, paint shields, and C-ring / tile rail suspension systems contribute to easy installation.
- In-ceiling coaxial loudspeakers with integrated backcans
- Includes grilles and C-ring / tile rail suspension systems
- Focused 75° narrow pattern featuring JBL's conical Radiation Boundary Integrator (RBI) technology for enhanced speech intelligibility and minimized time-arrival anomalies
- Multi-tap transformer enables use with 70V/100V constant-voltage systems, and offers a bypass position for use in an 8-Ohm setup
- 150W continuous program power handling
- Durable 6.5" woofer with polypropylene cone and butyl surround
- 1" soft dome tweeter with internal damping and ferrofluid cooling
- 70 Hz to 14 kHz frequency response (±3 dB), 55 Hz to 17 kHz frequency range (-10 dB)
- Removable locking 2-pin input connectors
- Includes installation accessories
