Custom sized soundbars

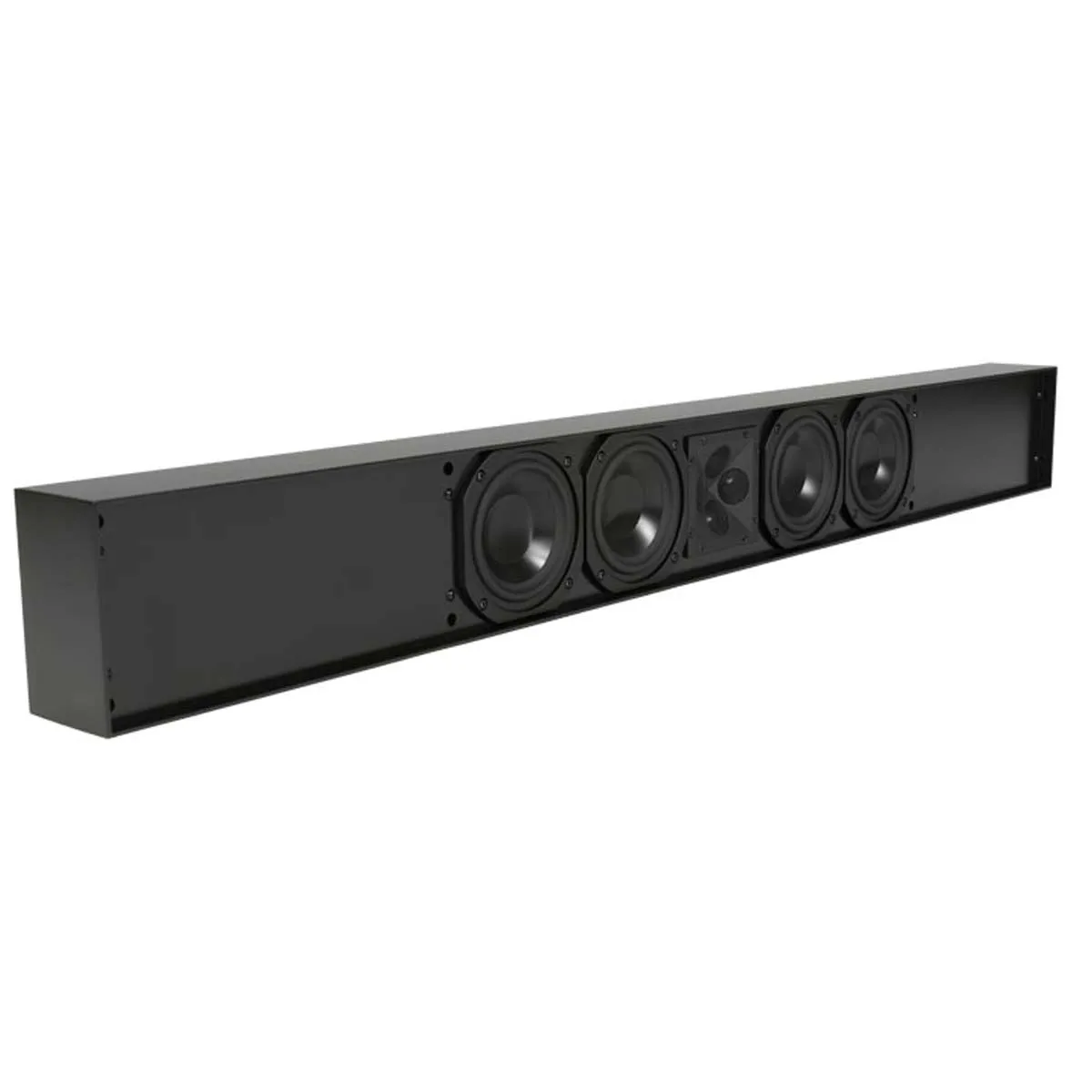

The SPL5Q soundbar sets new levels in sound output and wide frequency response. James Loudspeaker has taken their proprietary quad-tweeter technology from the BE reference series and scaled it down to a compact array of four 0.75” (19mm) aluminum dome tweeters to provide a wide dispersion angle. When combined with James’ high output 5.25” (133mm) woofers, the SPL5Q soundbars have a remarkable 89dB sensitivity with bass down below 65Hz, delivering high efficiency, low distortion, and crisp clear audiophile sound.
The SPL5Q range is perfect for any 3 channel system application. The cabinet design features all aircraft grade aluminum for strength, sonic performance, and suitability for outdoor/marine applications. Complete with a custom fit and coloured aluminum perforated grille, this bar mounts directly to any TV.
James custom fits each bar to fit your TV perfectly to seamlessly integrate this speaker into any entertainment system, delivering a subdued visual effect. Also available for wall mounting or configurable for other custom applications, this sound bar combines high quality audio with elegant design for the perfect home entertainment solution. Custom brackets for TV mounting are available and can be purchased separately.
Specifications
SPL5Q-C
Frequency Response: 65Hz-24kHz /-3dB
Nominal Impedance: 8 ohms
Sensitivity: 89dB 2.83V/1m
Recommended Power Range: 25 - 150W
Woofer: (4) 5.25" (127mm) Aluminum
Tweeter: (4) 0.75" (19mm) Aluminum
Enclosure: Aircraft Marine Grade Aluminum

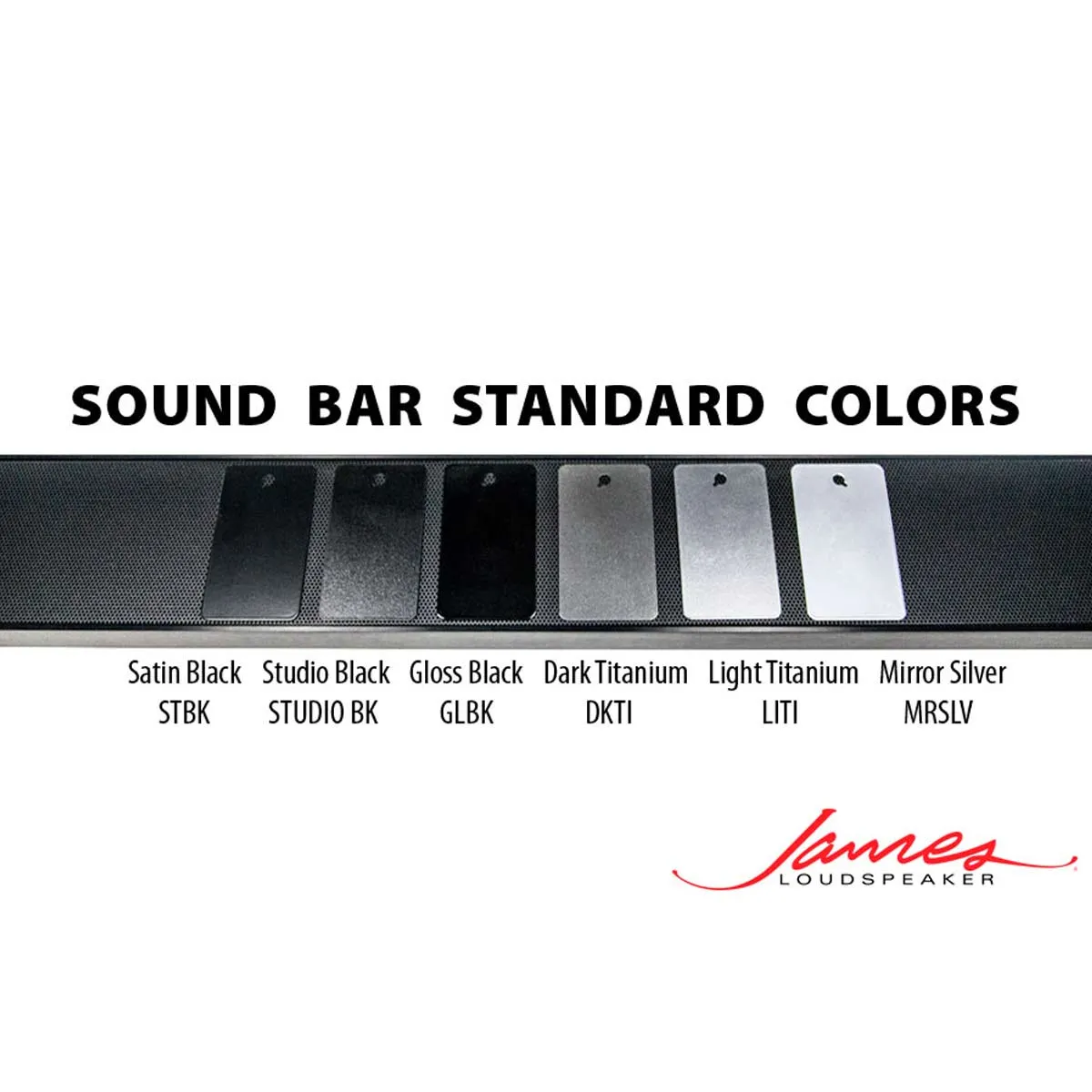

Finishes: Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
Width: Custom / (Absolute Minimum Width: 18.75")
Depth: 3.5 in (88.90 mm)
Height: 5.75 in (146.05 mm)
SPL5Q-LCR
Frequency Response: 65Hz-24kHz /-3dB
Nominal Impedance: 8 ohms
Sensitivity: 89dB 2.83V/1m
Recommended Power Range: 25 - 150W
Woofer: (4-6) 5.25" (127mm) Aluminum
Tweeter: (12) 0.75" (19mm) Aluminum
Enclosure: Aircraft Marine Grade Aluminum
Finishes: Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
Width: Custom / (Absolute Minimum Width: 41.25")
Depth: 3.5 in (88.90 mm)
Height: 5.75 in (146.05 mm)
SPL5Q-LR
Frequency Response: 65Hz-24kHz /-3dB
Nominal Impedance: 8 ohms
Sensitivity: 89dB 2.83V/1m
Recommended Power Range: 25 - 150W
Woofer: (4) 5.25" (127mm) Aluminum
Tweeter: (8) 0.75" (19mm) Aluminum
Enclosure: Aircraft Marine Grade Aluminum
Finishes: Studio Black, Satin Black, Gloss Black, Dark Titanium, Light Titanium, Mirror Silver
Width: Custom / (Absolute Minimum Width: 24.375")
Depth: 3.5 in (88.90 mm)
Height: 5.75 in (146.05 mm)
